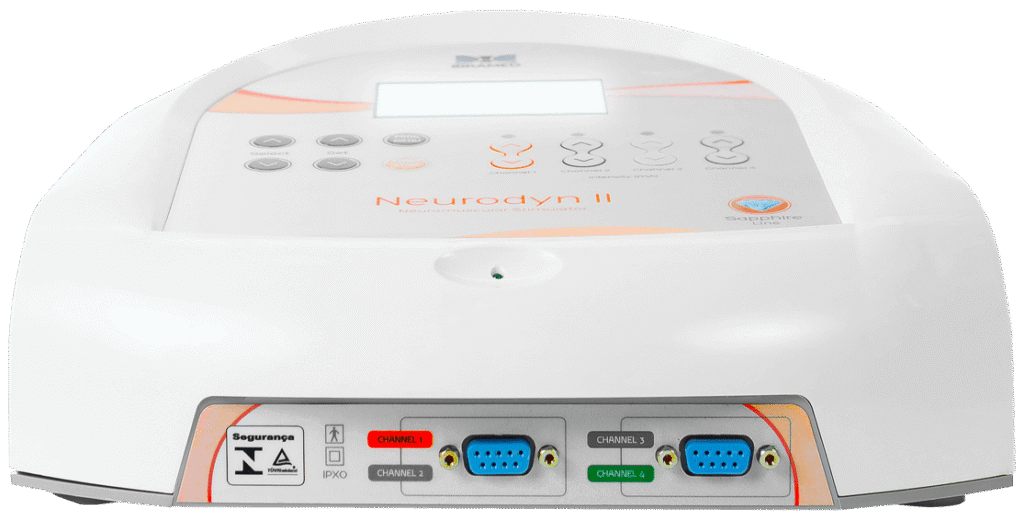

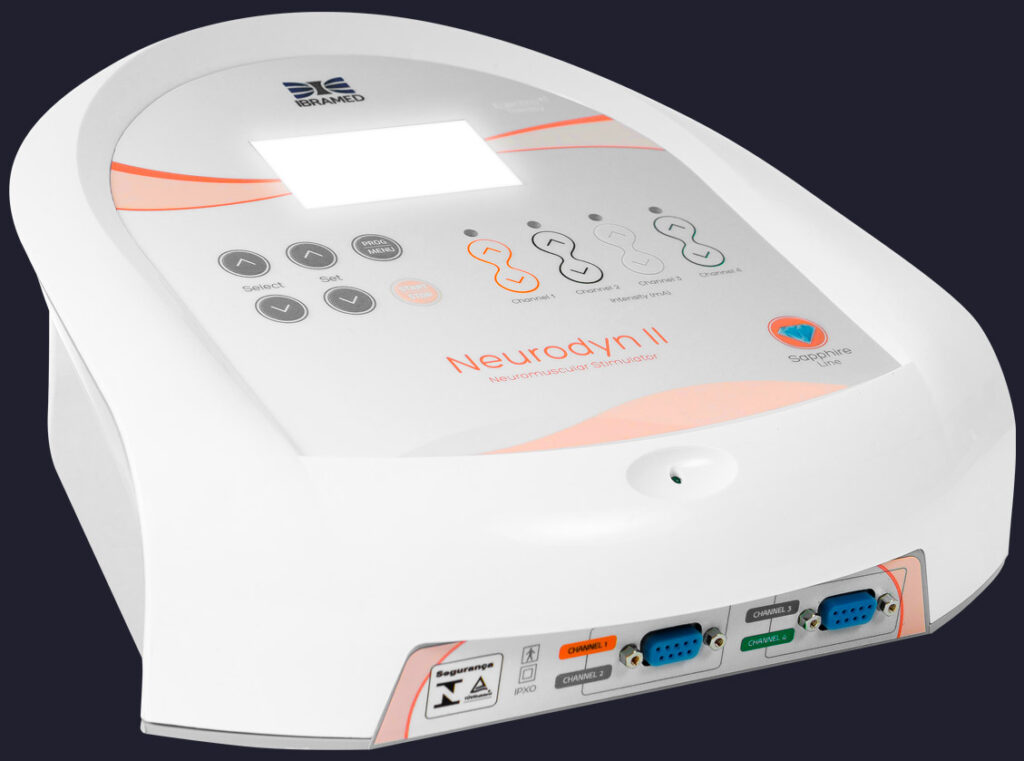

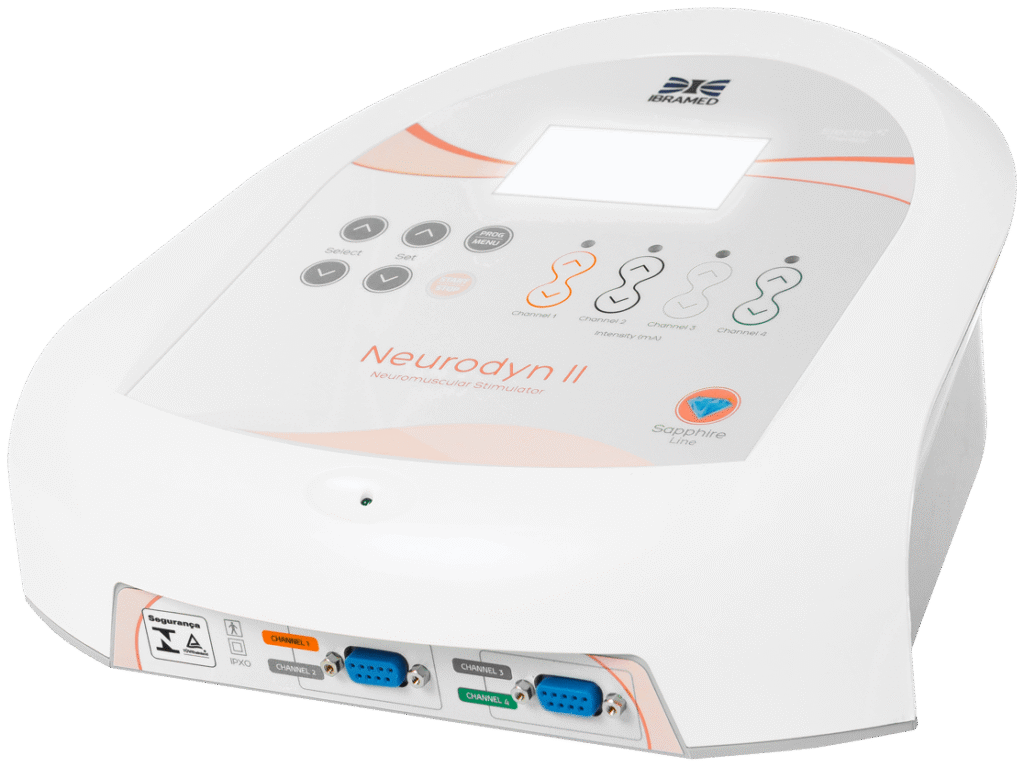

Neurodyn II
Neuromuscular Stimulators
The Neurodyn II is a transcutaneous neuromuscular stimulus device designed for physical rehabilitation treatments. It features 32 pre-programmed treatment protocols and allows for 20 custom protocols.
4 Output
Channels
With independent intensity controls
The Neurodyn II delivers TENS (Transcutaneous Electrical Nerve Stimulation), FES (Functional Electrical Stimulation), and Russian currents
Enhanced Usability
Equipped with Soft Touch buttons for ease of operation during treatments.
The Neurodyn II is an electrical stimulation device using electrodes in direct contact with the patient for therapy of neuromuscular dysfunctions, employing TENS, FES, and Russian currents. It offers four output channels with independently adjustable intensity. Pulse duration (T) can be set between 50 µs and 500 µs, and pulse repetition frequency (R) can be adjusted from 0.5 Hz up to 250 Hz. Settings are adjusted through a touchscreen keyboard and displayed on an LCD. Maximum intensity is 250 mA across all channels.
Indications
- Prevention or treatment of disuse atrophy
- Increased local blood circulation
- Muscle re-education
- Maintenance or increase of range of motion
- Relaxation of spastic muscles
- Symptomatic relief and management of chronic pain
- Increased local blood circulation
- Symptomatic relief of acute post-traumatic pain
- Symptomatic relief of acute postoperative pain
Included Items
- 1x IEC female PP cable, 2 × 0.75 mm² × 1500 mm (Code 03017006)
- 1x Blue/green cable kit for two-lead terminals (Code 02049011)
- 1x Black/orange cable kit for two-lead electrostimulation (Code 02049031)
- 8x Conductive rubber electrodes, 5 × 5 cm (Code 03026025)
- 1x Protective fuse card (Code 03026009)
- 1x 100 g tube of conductive gel – ANVISA registration No. 80122200001 – Manufacturer: RMC GEL CLÍNICO (Code 03044001)
Note: Use of cables, electrodes, or other accessories not specified above may increase emissions or reduce device immunity. The device specifications may change without prior notice.
Technical Specifications
- Output: 2 sockets powering 4 independent channels
- ANVISA Registration: 10360310012
- Width: 27 cm
- Height: 12.5 cm
- Depth: 26.6 cm
- Weight (without accessories): 1.85 kg
Voltage
- Universal voltage (110 V – 220 V)
